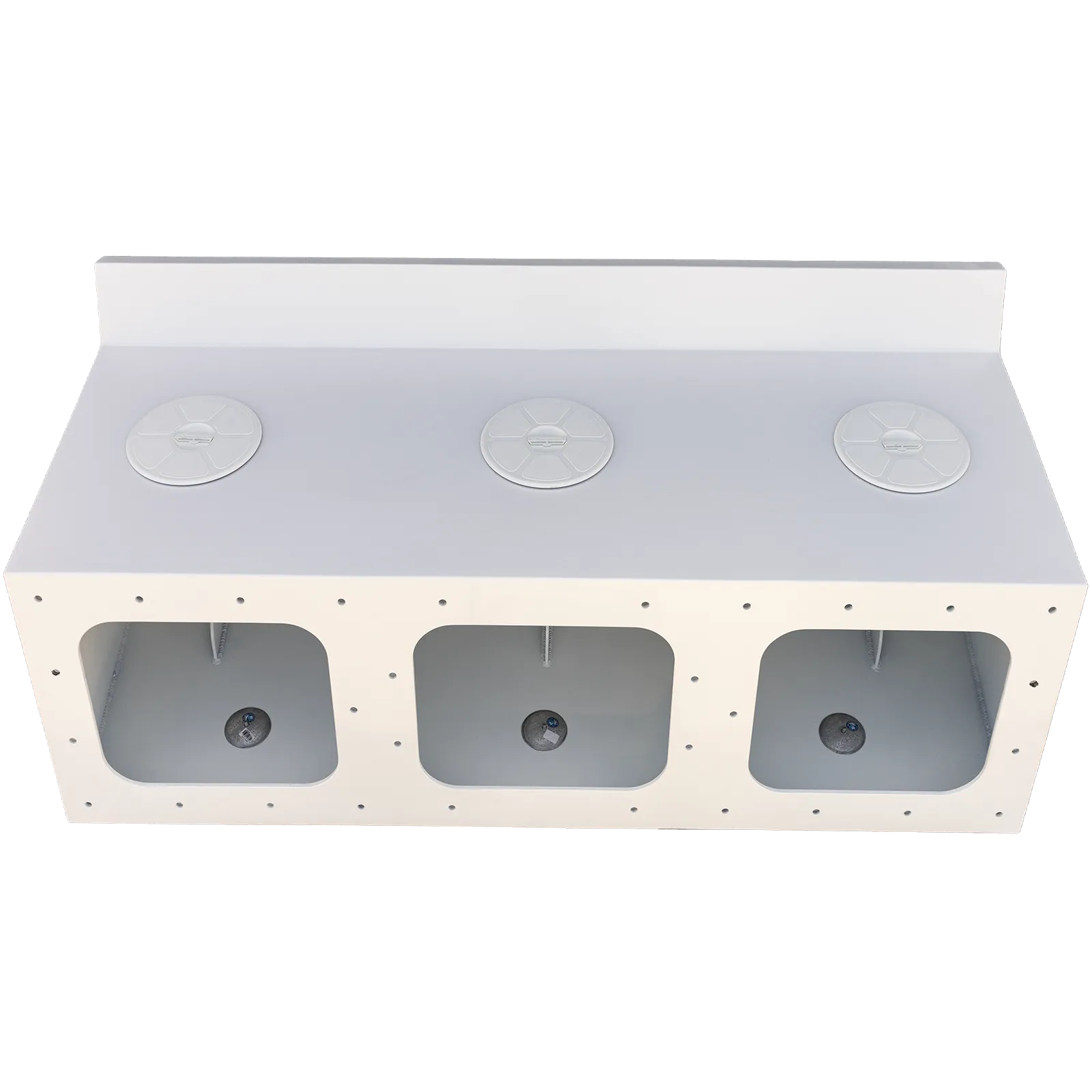

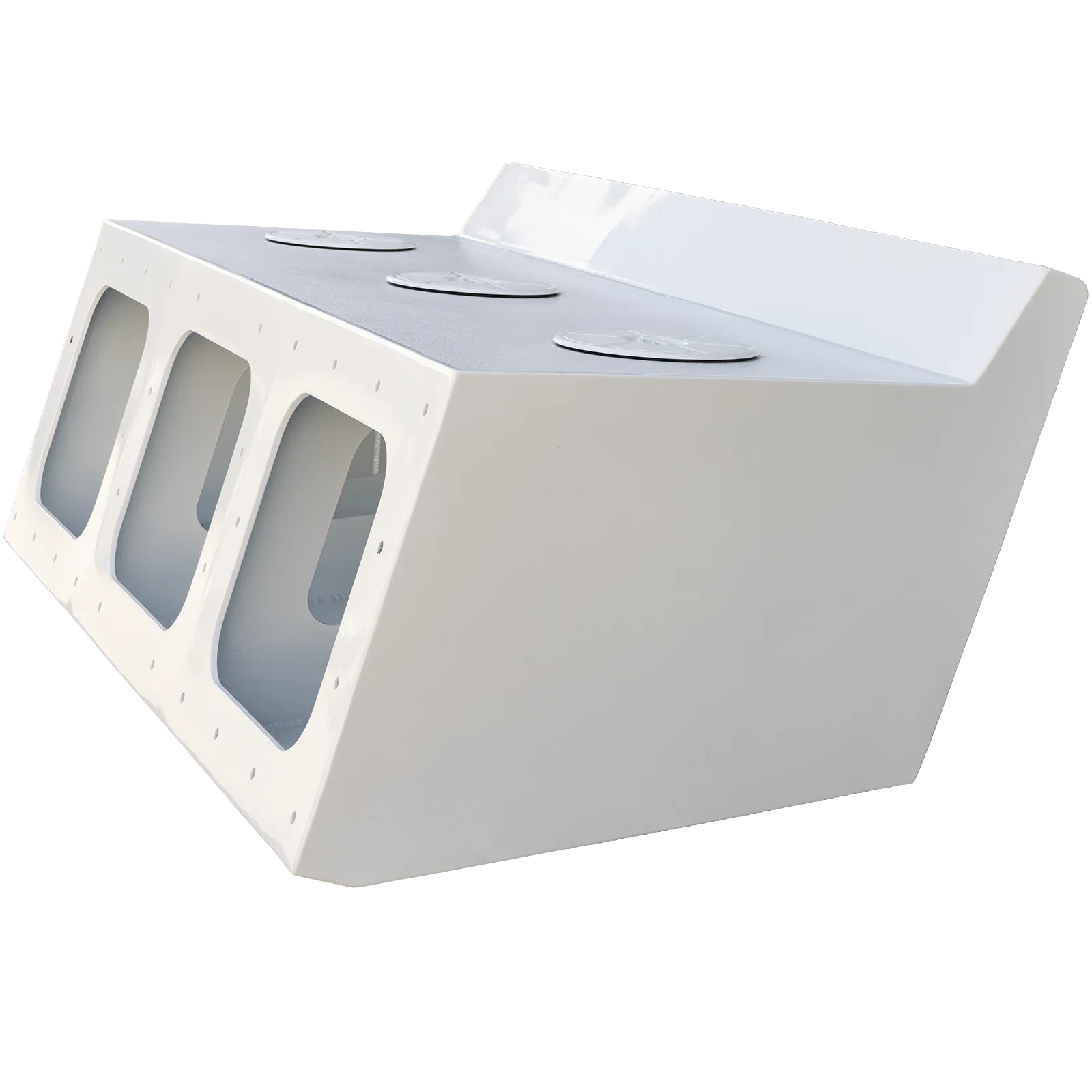

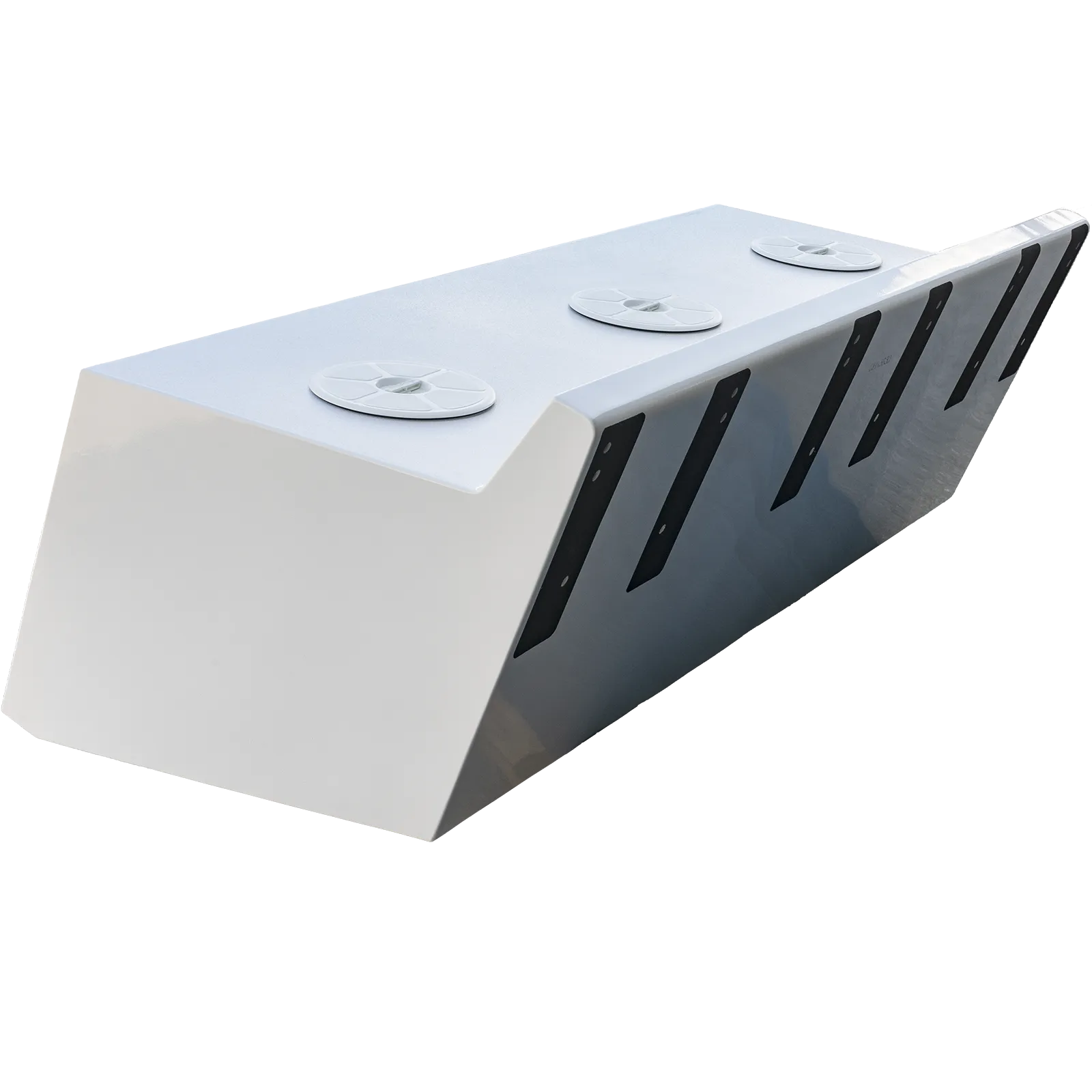

Name: Apex Triple NSP 3-Engine Bracket
SKU: 862555

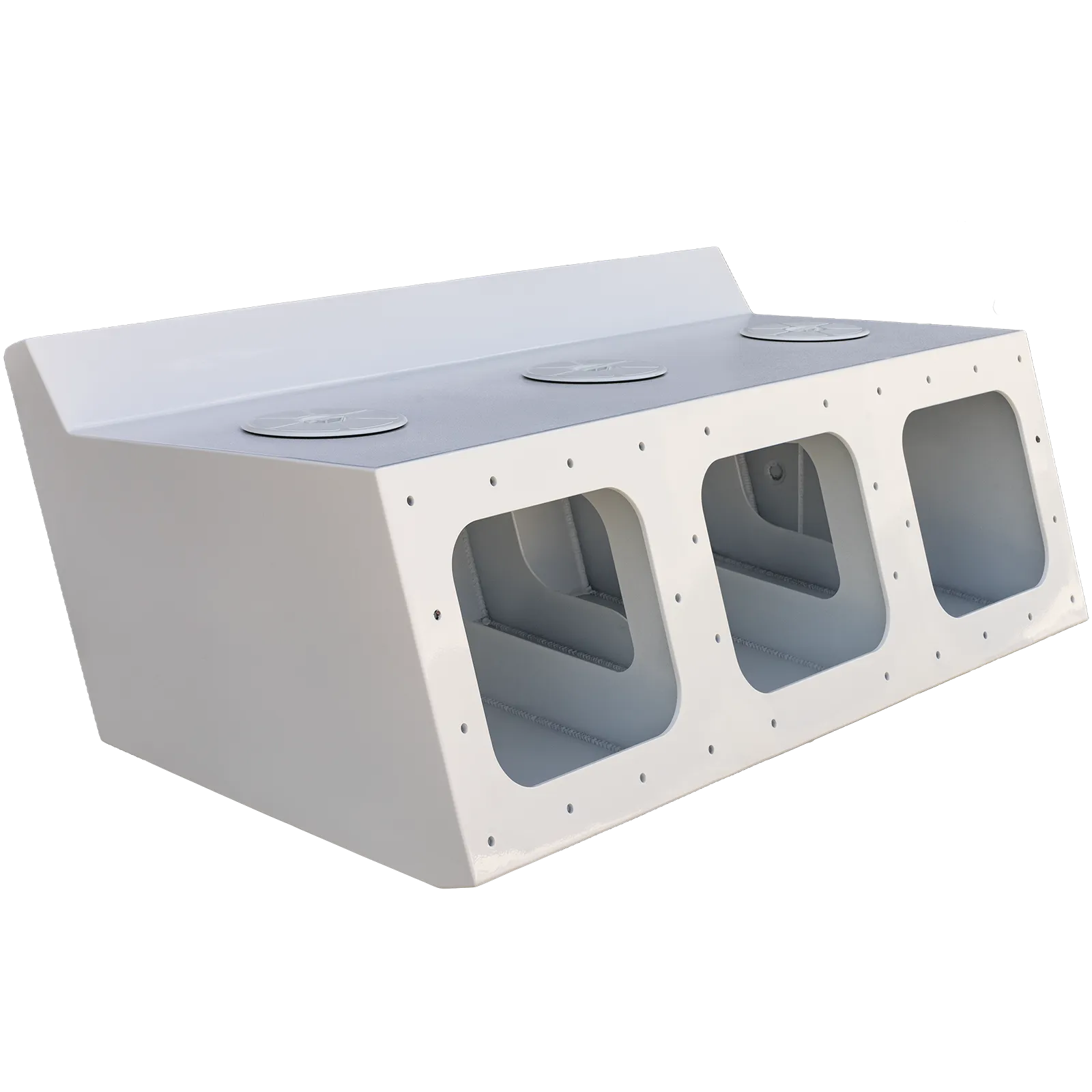

This bracket represents the simplest, most straightforward, and no-frills way of mounting triple outboards on your boat’s transom. No-swim platform to underscore its utilitarian design, and offered in customizable setbacks from 24” to 30” on a default 28.5” C-t-C for the outboard’s separation. It can optionally have a swim platform built into it at an additional cost.

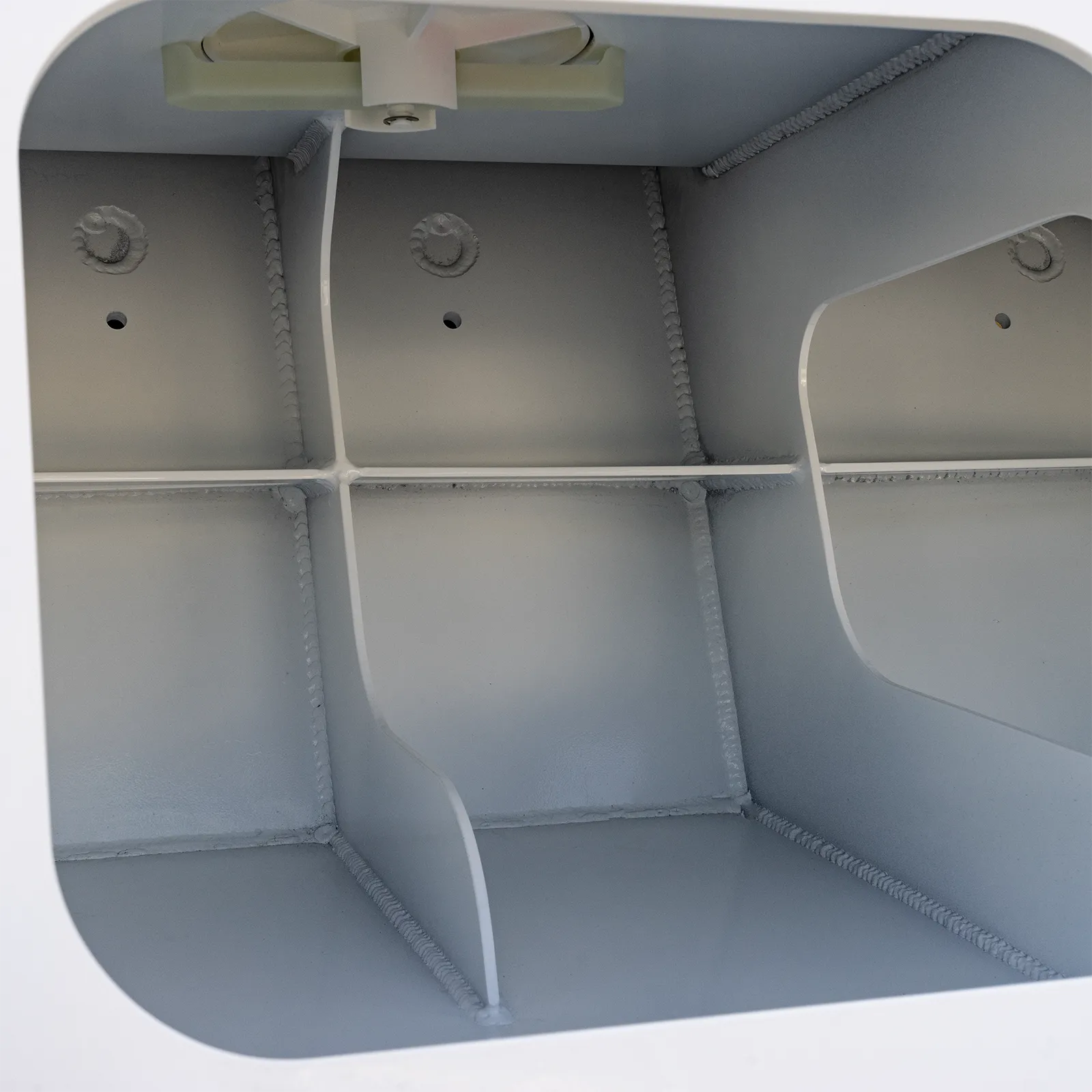

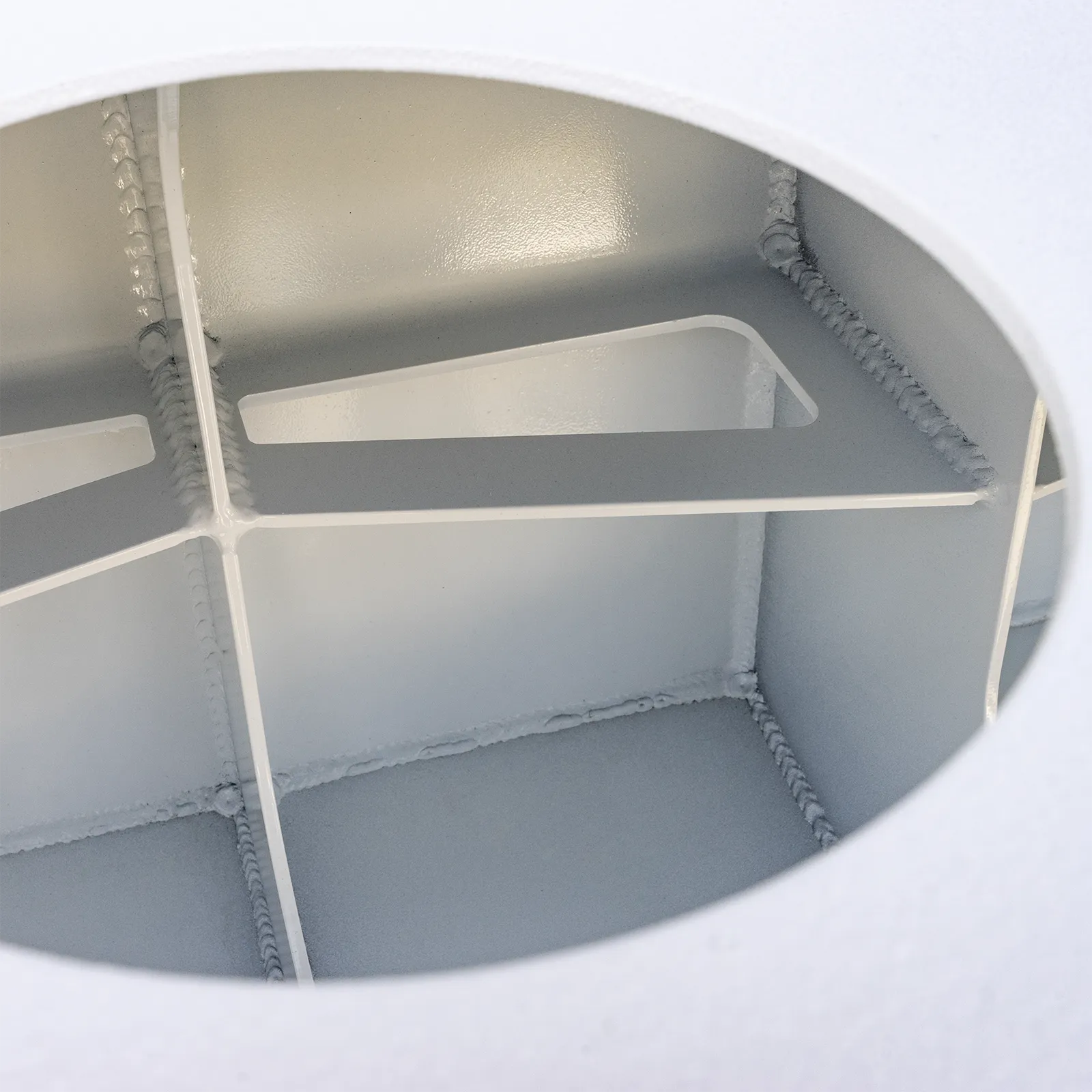

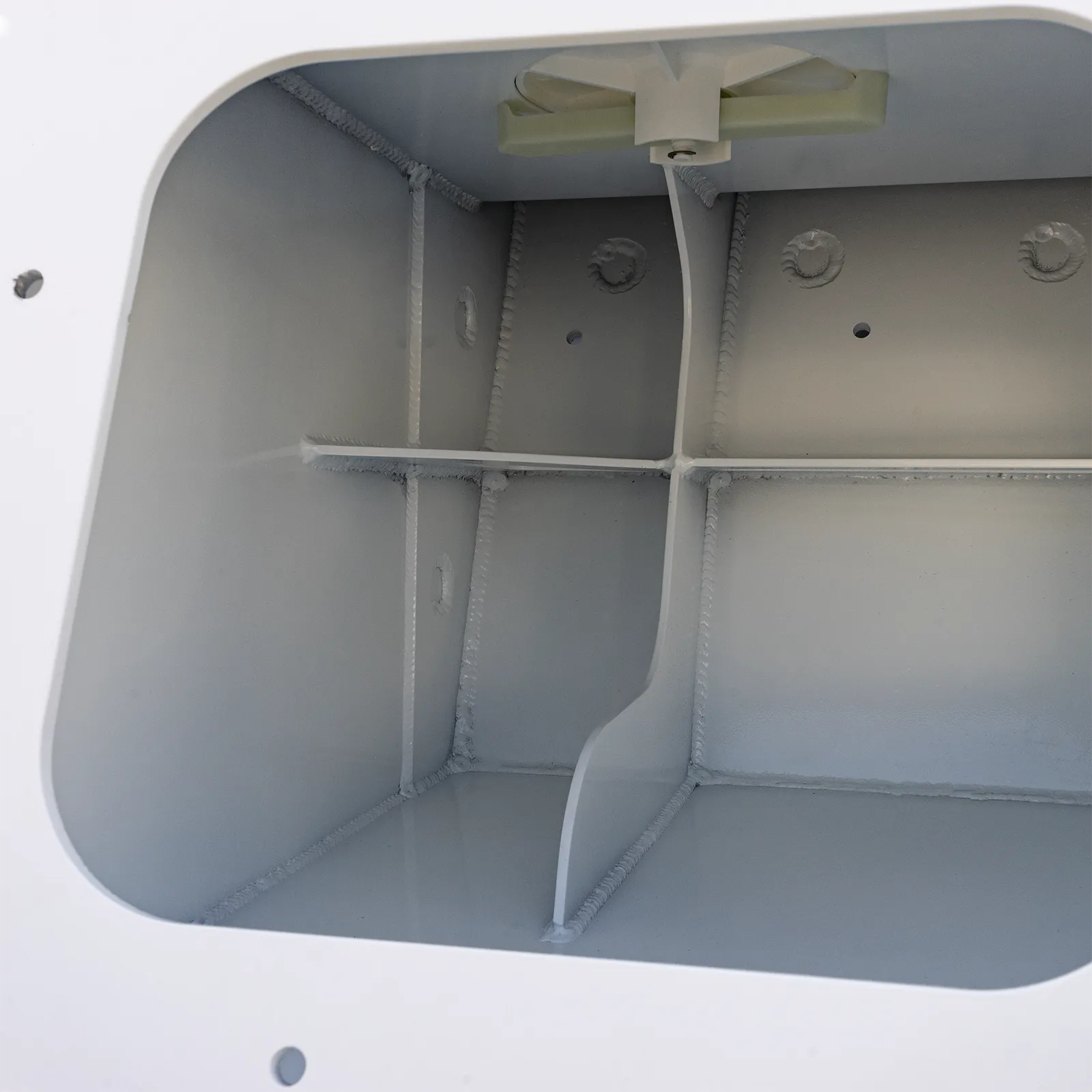

But don’t let its simple looks fool you into believing it’s not designed, built, and tested to meet and exceed the most demanding sport, leisure, and commercial use cases you could expose it to. Following our exclusive, heavily scantlingled reinforcement system, this is a bracket that doesn’t just rely on its shell thickness to offer the best load capacity in the North American marine market. You can fit up to 3 x 450 HP outboards on it with ample structural performance margins. We also build it with the best ABYC standards approved nautical grade aluminum alloy out there, 5086-H116, high titanium content alloy, with the best overall chemistry to withstand high salinity environments, which is then CNC water jet cut and cold process formed before being welded by our master welders to exacting specs, to then cover it in a 2-step powder coating process, first a coat of powder coated matte primer base and then the final bright finish color coat, both independently baked to perfection for the best in marine environment protection.
Nothing beats a properly spec’d bracket to obtain the best hydrodynamic performance out of a set of outboards.

Note: Our brackets are rarely in stock as we typically make them to order. They always ship via expensive LTL freight so we won't accept returns. Check your boat's measurements carefully and ensure your order perfectly reflects what you want.

Highlights:

All-aluminum construction using 0.375" & 0.250" thick water jet cut and cold-formed 5086-H116 nautical grade aluminum alloy sheets.

Ideal for catamarans or boats that don't need a swim platform. This bracket's low weight and small profile demean its real-world tested outboard carrying capacity: up to 3 x 450 HP/980 lbs.

100% CAD/CAM design & manufacture. All of our brackets are FEA and real-world tested to the most stringent safety and performance parameters and follow to the dot all ABYC guidelines regarding materials selection, fabrication practices, and galvanic corrosion avoidance.

Exclusive dual-electrostatic powdered coatings: primer gloss powder coating for the ultimate in marine environment protection. We first apply an electrostatic primer coat, oven-cure it, and then apply a thick, high-mil powder coating for the final external coating. No other competitor in the market goes that far to ensure your new bracket's appearance and durability.
